jqTransformの使い方

  1. 下記ページの 「DOWNLOAD」 よりファイル1式をダウンロード。
  2. ダウンロードしたファイルを任意の場所にコピー。

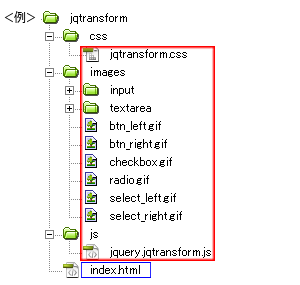

    ファイル構成
  3. 動作させるファイル(サンプルではindex.html)にコードを記述。
    パスは上記ファイル構成の場合なので環境にあわせて変更>
    ・head部分にcssファイルを読み込ませるためのコードを記述。
    <head>
    <!--ダウンロードしたファイル-->
    <link rel="stylesheet" type="text/css" href="css/jqtransform.css" />
    </head>


    サンプルのcssコード(サンプルのcssは改変しています)

    /*ページ設定部分(style.cssなどで設定していれば削除する)*/
    * {
    	margin: 0;
    	padding: 0;
    }
    body {
    	background: #fff;
    	font-family: Arial;
    }
    #container {
    	width: 500px;
    	margin: 100px auto;
    }
    a {
    	color: #333;
    	text-decoration: none;
    }
    a:hover {
    	color: #ff0000;
    	text-decoration: underline;
    }
    /*ここまでページ設定部分*/


    /*ここからjqTransformの設定*/
    form.jqtransformdone label {
    	margin-top: 4px;
    	margin-right: 8px;
    	display: block;
    	float: left;
    }
    form.jqtransformdone div.rowElem {
    	clear: both;
    	padding: 4px 0px;
    }
    /* -------------
     * Buttons
     * ------------- */
    button.jqTransformButton {
    	margin: 0px;
    	padding: 0px;
    	border: none;
    	background-color: transparent;
    	cursor: pointer;
    	overflow: visible;
    	font-family: Arial;
    }
    *:first-child+html button.jqTransformButton[type] {
    	width: 1;
    } /* IE7 */
    button.jqTransformButton span {
    	background: transparent url(../images/btn_right.gif) no-repeat right top;
    	display: block;
    	float: left;
    	padding: 0px 4px 0px 0px; /* sliding doors padding */
    	margin: 0px;
    	height: 33px;
    }
    button.jqTransformButton span span {
    	background: transparent url(../images/btn_left.gif) no-repeat top left;
    	color: #333;
    	padding: 8px 4px 0px 8px;
    	font-weight: normal;
    	font-size: 12px;
    	line-height: 13px;
    	display: block;
    	text-decoration: none;
    	height: 33px;
    }
    /*hover*/
    button.jqTransformButton_hover span span {
    	background-position: left -33px;
    }
    button.jqTransformButton_hover span {
    	background-position: right -33px;
    }
    /*clicked*/
    button.jqTransformButton_click span span {
    	background-position: left -66px;
    }
    button.jqTransformButton_click span {
    	background-position: right -66px;
    }
    /* IE 6 */
    * html button.jqTransformButton {
    	height: 33px;
    }
    * button.jqTransformButton span span {
    	height: 25px;
    }
    /* IE 7 */
    *+ html button.jqTransformButton {
    	height: 33px;
    }
    *+ button.jqTransformButton span span {
    	height: 25px;
    }
    /* -------------
     * Inputs
     * ------------- */
    .jqTransformInputWrapper {
    	background: transparent url(../images/input/input_text_left.gif) no-repeat left top;
    	height: 31px;
    	padding: 0px;
    	float: left;
    }
    .jqTransformInputInner {
    	background: transparent url(../images/input/input_text_right.gif) no-repeat top right;
    	padding: 0px;
    	margin: 0px;
    }
    .jqTransformInputInner div {
    	height: 31px;
    	margin: 0px 0px 0px 8px;
    }
    .jqTransformInputInner div input {
    	font-family: Arial, Helvetica, sans-serif;
    	font-size: 12px;
    	line-height: 18px;
    	vertical-align: middle;
    	height: 31px;
    	color: #404040;
    	border: none;
    	padding: 8px 0px 0px 0px;
    	margin: 0px;
    	background: transparent;
    }
    /*  IE6 */
    * html .jqTransformInputInner div input {
    	padding: 6px 0 0 0;
    	margin: 0 0 0 -8px;
    	height: 24px;
    }
    /* Ie7 */
    *+ html .jqTransformInputInner div input {
    	padding: 6px 0 0 0;
    	margin-left: -10px;
    	height: 24px;
    }
    /*hover*/
    .jqTransformInputWrapper_hover {
    	background-position: left -31px;
    }
    .jqTransformInputWrapper_hover div.jqTransformInputInner {
    	background-position: right -31px;
    }
    /*focus*/
    .jqTransformInputWrapper_focus {
    	background-position: left -62px;
    }
    .jqTransformInputWrapper_focus div.jqTransformInputInner {
    	background-position: right -62px;
    }
    .jqTransformSafari .jqTransformInputInner div {
    	position: relative;
    	overflow: hidden;
    	margin: 0px 8px;
    }
    .jqTransformSafari .jqTransformInputInner div input {
    	background-color: none;
    	position: absolute;
    	top: -10px;
    	left: -2px;
    	height: 42px;
    	padding-left: 4px;
    }
    /* -------------
     * Textarea
     * ------------- */
    table.jqTransformTextarea td#jqTransformTextarea-mm textarea {
    	font-size: 12px;
    	line-height: 16px;
    }
    table.jqTransformTextarea td {
    	font-size: 1px;
    	line-height: 1px;
    	width: 5px;
    	height: 5px;
    	margin: 0;
    	padding: 0;
    }
    table.jqTransformTextarea {
    }
    table.jqTransformTextarea tr {
    /*border: 1px solid red;*/

    }
    table.jqTransformTextarea textarea {
    	margin: 0;
    	padding: 0;
    	border: 0;
    	background: none;
    }
    table.jqTransformTextarea td#jqTransformTextarea-tl {
    	background: url(../images/textarea/textarea_tl.gif) no-repeat top left;
    }
    table.jqTransformTextarea td#jqTransformTextarea-tm {
    	background: url(../images/textarea/textarea_tm.gif) repeat-x top left;
    }
    table.jqTransformTextarea td#jqTransformTextarea-tr {
    	background: url(../images/textarea/textarea_tr.gif) no-repeat top left;
    }
    table.jqTransformTextarea td#jqTransformTextarea-ml {
    	background: url(../images/textarea/textarea_ml.gif) repeat-y top left;
    }
    table.jqTransformTextarea td#jqTransformTextarea-mm {
    	background: url(../images/textarea/textarea-mm.gif) repeat;
    }
    table.jqTransformTextarea td#jqTransformTextarea-mr {
    	background: url(../images/textarea/textarea_mr.gif) repeat-y top left;
    }
    table.jqTransformTextarea td#jqTransformTextarea-bl {
    	background: url(../images/textarea/textarea_bl.gif) no-repeat top left;
    }
    table.jqTransformTextarea td#jqTransformTextarea-bm {
    	background: url(../images/textarea/textarea_bm.gif) repeat-x top left;
    }
    table.jqTransformTextarea td#jqTransformTextarea-br {
    	background: url(../images/textarea/textarea_br.gif) no-repeat top left;
    }
    /*hover*/
    table.jqTransformTextarea-hover td#jqTransformTextarea-tl {
    	background-position: 0px -5px;
    }
    table.jqTransformTextarea-hover td#jqTransformTextarea-tm {
    	background-position: 0px -5px;
    }
    table.jqTransformTextarea-hover td#jqTransformTextarea-tr {
    	background-position: 0px -5px;
    }
    table.jqTransformTextarea-hover td#jqTransformTextarea-ml {
    	background-position: -5px 0px;
    }
    table.jqTransformTextarea-hover td#jqTransformTextarea-mm {
    	background-image: url(../images/textarea/textarea-mm-hover.gif);
    }
    table.jqTransformTextarea-hover td#jqTransformTextarea-mr {
    	background-position: -5px 0px;
    }
    table.jqTransformTextarea-hover td#jqTransformTextarea-bl {
    	background-position: 0px -5px;
    }
    table.jqTransformTextarea-hover td#jqTransformTextarea-bm {
    	background-position: 0px -5px;
    }
    table.jqTransformTextarea-hover td#jqTransformTextarea-br {
    	background-position: 0px -5px;
    }
    /*focus*/
    table.jqTransformTextarea-focus td#jqTransformTextarea-tl {
    	background-position: 0px -10px;
    }
    table.jqTransformTextarea-focus td#jqTransformTextarea-tm {
    	background-position: 0px -10px;
    }
    table.jqTransformTextarea-focus td#jqTransformTextarea-tr {
    	background-position: 0px -10px;
    }
    table.jqTransformTextarea-focus td#jqTransformTextarea-ml {
    	background-position: -10px 0px;
    }
    table.jqTransformTextarea-focus td#jqTransformTextarea-mm {
    	background-image: url(../images/textarea/textarea-mm-focus.gif);
    }
    table.jqTransformTextarea-focus td#jqTransformTextarea-mr {
    	background-position: -10px 0px;
    }
    table.jqTransformTextarea-focus td#jqTransformTextarea-bl {
    	background-position: 0px -10px;
    }
    table.jqTransformTextarea-focus td#jqTransformTextarea-bm {
    	background-position: 0px -10px;
    }
    table.jqTransformTextarea-focus td#jqTransformTextarea-br {
    	background-position: 0px -10px;
    }
    table.jqTransformTextarea .jqTransformSafariTextarea div {
    	position: relative;
    	overflow: hidden;
    	border: 0px solid red;
    }
    table.jqTransformTextarea .jqTransformSafariTextarea textarea {
    	background: none;
    	position: absolute;
    	top: -10px;
    	left: -10px;
    	padding: 10px 10px 10px 10px;
    	resize: none;
    }
    /* -------------
     * Radios
     * ------------- */
    .jqTransformRadioWrapper {
    	float: left;
    	display: block;
    	margin: 0px 4px;
    	margin-top: 5px;
    }
    .jqTransformRadio {
    	background: transparent url(../images/radio.gif) no-repeat center top;
    	vertical-align: middle;
    	height: 19px;
    	width: 18px;
    	display: block;/*display: -moz-inline-block;*/
    }
    /* -------------
     * Checkboxes
     * ------------- */
    span.jqTransformCheckboxWrapper {
    	display: block;
    	float: left;
    	margin-top: 5px;
    }
    a.jqTransformCheckbox {
    	background: transparent url(../images/checkbox.gif) no-repeat center top;
    	vertical-align: middle;
    	height: 19px;
    	width: 18px;
    	display: block;/*display: -moz-inline-block;*/
    }
    /* -------------
     * Checked - Used for both Radio and Checkbox
     * ------------- */
    a.jqTransformChecked {
    	background-position: center bottom;
    }
    /* -------------
     * Selects
     * ------------- */
    .jqTransformSelectWrapper {
    	width: 45px;
    	position: relative;
    	height: 31px;
    	background: url(../images/select_left.gif) no-repeat top left;
    	float: left;
    }
    .jqTransformSelectWrapper div span {
    	font-size: 12px;
    	float: none;
    	position: absolute;
    	white-space: nowrap;
    	height: 31px;
    	line-height: 15px;
    	padding: 8px 0 0 7px;
    	overflow: hidden;
    	cursor: pointer;/*border: 1px solid #CCCCCC;*/
    /*	border-right: none;*/
    }
    .jqTransformSelectWrapper a.jqTransformSelectOpen {
    	display: block;
    	position: absolute;
    	right: 0px;
    	width: 31px;
    	height: 31px;
    	background: url(../images/select_right.gif) no-repeat center center;
    }
    .jqTransformSelectWrapper ul {
    	position: absolute;
    	width: 43px;
    	top: 30px;
    	left: 0px;
    	list-style: none;
    	background-color: #FFF;
    	border: solid 1px #CCC;
    	display: none;
    	margin: 0px;
    	padding: 0px;
    	height: 150px;
    	overflow: auto;
    	overflow-y: auto;
    	z-index: 10;
    }
    .jqTransformSelectWrapper ul a {
    	display: block;
    	padding: 5px;
    	text-decoration: none;
    	color: #333;
    	background-color: #FFF;
    	font-size: 12px;
    }
    .jqTransformSelectWrapper ul a.selected {
    	background: #EDEDED;
    	color: #333;
    }
    .jqTransformSelectWrapper ul a:hover, .jqTransformSelectWrapper ul a.selected:hover {
    	background: #3582c4;
    	color: #fff;
    }
    /* -------------
     * Hidden - used to hide the original form elements
     * ------------- */
    .jqTransformHidden {
    	display: none;
    }

    ・</body>の直前にjsファイルを読み込ませるためのコードを記述。
    <!--googleのCDN(ネットワーク経由でコンテンツを提供するサービス)よりjqueryをロード-->
    <script src="http://ajax.googleapis.com/ajax/libs/jquery/1.4.2/jquery.min.js"></script>
    <!--ダウンロードしたファイル-->
    <script type="text/javascript" src="js/jquery.jqtransform.js" ></script>
    <!--javascript追記-->
    <script language="javascript">
    		$(function(){
    			$('form').jqTransform({imgPath:'images/'});
    		});
    	</script>
    </body>
    ・<body></body>内にコードを記述
    <form action="post.php" method="POST">
        <div class="rowElem">
          <label>Input Text:</label>
          <input type="text" name="inputtext"/>
        </div>
        <div class="rowElem">
          <label>Input Password:</label>
          <input type="password" />
        </div>
        <div class="rowElem">
          <label>Checkbox: </label>
          <input type="checkbox" name="chbox" id="">
        </div>
        <div class="rowElem">
          <label>Radio :</label>
          <input type="radio" id="" name="question" value="oui" checked >
          <label>oui</label>
          <input type="radio" id="" name="question" value="non" >
          <label>non</label>
        </div>
        <div class="rowElem">
          <label>Textarea :</label>
          <textarea cols="40" rows="12" name="mytext"></textarea>
        </div>
        <div class="rowElem">
          <label>Select :</label>
          <select name="select">
            <option value="">1&nbsp;</option>
            <option value="opt1">2&nbsp;</option>
          </select>
        </div>
        <div class="rowElem">
          <label>Select Redimentionné :</label>
          <select name="select2" >
            <option value="opt1">Big Option test line with more wordssss</option>
            <option value="opt2">Option 2</option>
            <option value="opt3">Option 3</option>
            <option value="opt4">Option 4</option>
            <option value="opt5">Option 5</option>
            <option value="opt6">Option 6</option>
            <option value="opt7">Option 7</option>
            <option value="opt8">Option 8</option>
          </select>
        </div>
        <div class="rowElem">
          <label>Submit button:</label>
          <input type="submit" value="Envoyer" />
        </div>
        <div class="rowElem">
          <label>Reset button:</label>
          <input type="reset" value="Annuler" />
        </div>
        <div class="rowElem">
          <label>Input button:</label>
          <input type="button" value="bouton" />
        </div>
      </form>


    サンプルのhtmlコード

    <!DOCTYPE html>
    <html lang="ja">
    <head>
    <meta charset="utf-8" />
    <title>jqTransform</title>
    <link rel="stylesheet" type="text/css" href="css/jqtransform.css">
    </head>

    <body>
    <div id="container">
      <form action="post.php" method="POST">
        <div class="rowElem">
          <label>Input Text:</label>
          <input type="text" name="inputtext"/>
        </div>
        <div class="rowElem">
          <label>Input Password:</label>
          <input type="password" />
        </div>
        <div class="rowElem">
          <label>Checkbox: </label>
          <input type="checkbox" name="chbox" id="">
        </div>
        <div class="rowElem">
          <label>Radio :</label>
          <input type="radio" id="" name="question" value="oui" checked >
          <label>oui</label>
          <input type="radio" id="" name="question" value="non" >
          <label>non</label>
        </div>
        <div class="rowElem">
          <label>Textarea :</label>
          <textarea cols="40" rows="12" name="mytext"></textarea>
        </div>
        <div class="rowElem">
          <label>Select :</label>
          <select name="select">
            <option value="">1&nbsp;</option>
            <option value="opt1">2&nbsp;</option>
          </select>
        </div>
        <div class="rowElem">
          <label>Select Redimentionné :</label>
          <select name="select2" >
            <option value="opt1">Big Option test line with more wordssss</option>
            <option value="opt2">Option 2</option>
            <option value="opt3">Option 3</option>
            <option value="opt4">Option 4</option>
            <option value="opt5">Option 5</option>
            <option value="opt6">Option 6</option>
            <option value="opt7">Option 7</option>
            <option value="opt8">Option 8</option>
          </select>
        </div>
        <div class="rowElem">
          <label>Submit button:</label>
          <input type="submit" value="Envoyer" />
        </div>
        <div class="rowElem">
          <label>Reset button:</label>
          <input type="reset" value="Annuler" />
        </div>
        <div class="rowElem">
          <label>Input button:</label>
          <input type="button" value="bouton" />
        </div>
      </form>
    </div>
    <a href="http://saetl.net/javascriptsample.html"> <span style="position:fixed; right:10px; top:10px; font-size:1em; color:#000;">Javascriptサンプル集 - Saetl.net</span> </a>
    <script src="http://ajax.googleapis.com/ajax/libs/jquery/1.4.2/jquery.min.js"></script>
    <script type="text/javascript" src="js/jquery.jqtransform.js" ></script>
    <script language="javascript">
    		$(function(){
    			$('form').jqTransform({imgPath:'images/'});
    		});
    	</script>
    </body>
    </html>

  4. ファイル1式をサーバーにアップロードして設置完了。
    サンプル
